DCL Series

The DCL Series sumps are engineered with intent and offer a watertight solution. Its double conduitless design eliminates unnecessary penetrations by allowing electrical conduits to enter into the dispenser at both ends without penetrating the sump walls.

Five Product Entries
Extra long sump wall has room for up to five product entries.

Heavy-gauge Steel Frames
The dispenser sump frame is manufactured from heavy gauge steel, providing strength and rigidity, and is designed to lock into the concrete foundation.

Single Piece Construction
Eliminates any seams and provides less places for water penetration.

Composite Rainlip
Prevents surface water from entering the sump and offers better protection against rust and corrosion than metallic rainlips.

Universal Stabilizer Bars
Universal stabilizer bars with 3-axis adjustment accommodate multi-product dispensers without displacing product lines and ensure proper load transfer in case of an impact from any direction.

UL Listed 2447

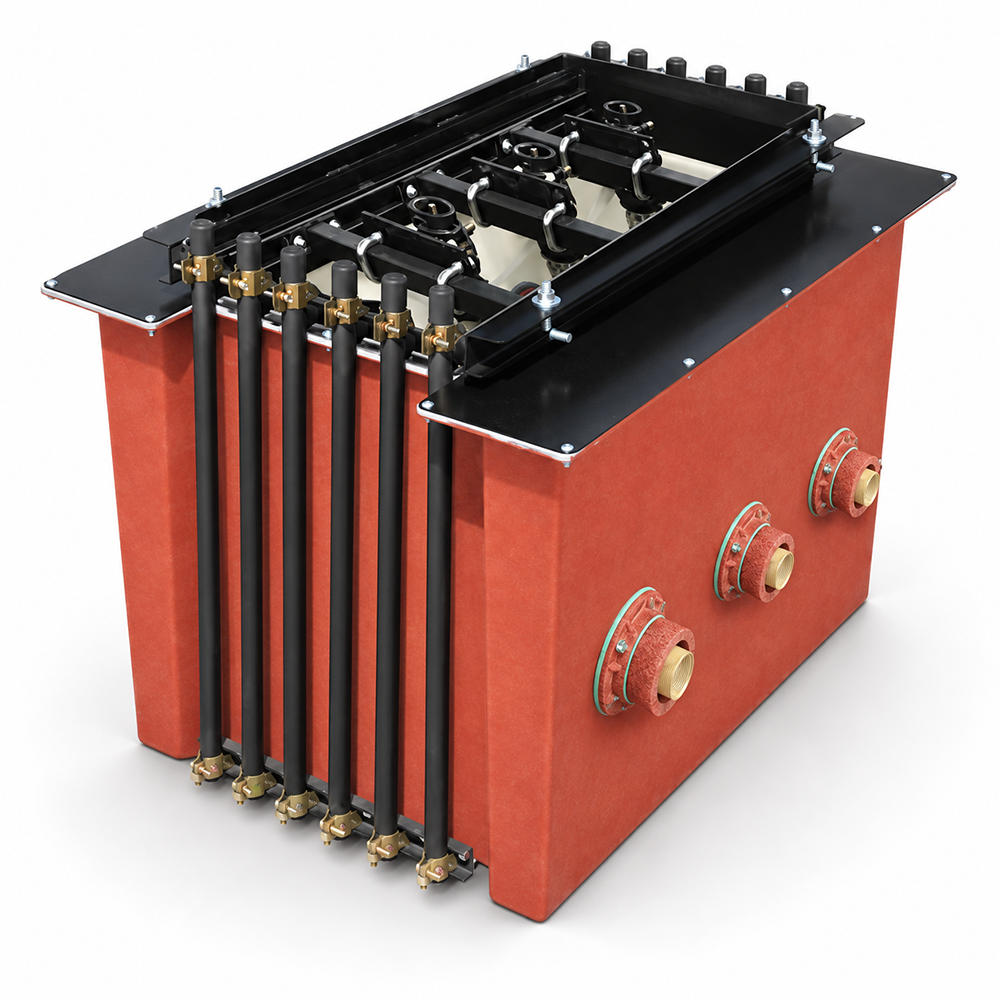

DCL Series Fiberglass Dispenser Sump

Optional Features

Pre Plumbed Service Icon

Pre-Plumbed Service Available

PCI’s Dispenser Sumps are available with completely customizable pre-plumb service built to customer’s specifications. Our pre-plumb dispenser sumps include all internal piping from the shear valve to penetration, eliminating the need for any additional field labor.

Double Wall Options Available

Available in double wall for a variety of monitoring options to satisfy local regulations and requirements. From dry fluid or fluid filled interstitial to vacuum interstice monitoring, PCI has all options to best fit your installation and compliance needs.

Dimensions

Dispenser Single Wall Double Wall Width Length Stabilizer Kit
Bennett Pacific DCL146360B DCLDW146360B 14.75″ 36″ SVU-L
Gilbarco Encore DCL174360 DCLDW174360 17.5″ 36″ SVU-L
Wayne Helix 48″ DCL170360 DCLDW170360 17″ 36″ SVU-L
Wayne Ovation DCL146360 DCLDW146360 14.75″ 36″ SVU-L
Wayne Vista 48″ DCL112360 DCLDW112360 11.25″ 36″ SVU-S

Additional Models Available

Additional Double Wall AcceSsories (ordered Separately)

Part No. Description
EQP-DW-VAC Vacuum Kit (Required for all Double Wall Sumps)
EQP-IF-5GAL Interstitial Fluid, 5 Gallons (Required for Double Wall Sumps with Fluid Filled Interstice)
EQP-IF-ADP-UC Interstitial Fluid Adapter Kit ( 1 Per Sump, Required for Double Wall Dispenser & Grade Level Transition Sumps with Fluid Filled Interstice)

To learn more about Double Wall Dispenser Sumps, Visit the Double Wall page »

DCL Sump Dimension

Downloads

Regulatory

UL® Listed 2447

California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)

State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
