Dispenser Conversion Frames and Plates

PCI’s dispenser conversion frames and plates simplify dispenser upgrades by adapting existing equipment to accommodate a new dispenser. They provide a practical solution for updating your fueling system while keeping existing underground equipment in place, helping reduce the scope of replacement work.

Heavy-Duty Design

Manufactured from heavy-gauge steel, PCI conversion frames and plates provide durable support for dispenser upgrade applications. A powder-coated finish improves corrosion resistance and helps protect exposed steel surfaces in the fueling environment.

Standard Sizes

PCI offers conversion frames and plates to fit most dispenser frames currently available. With options for a wide range of upgrade applications, PCI can help identify a configuration suited to your existing sump and new dispenser.

Find the Right Fit

Before ordering, complete PCI’s Conversion Frame Survey with information about your existing sump, opening dimensions, anchor bolts, and new dispenser make and model. Accurate measurements help our team evaluate your application and identify the appropriate frame or plate.

Customizable Options

For projects with specific material or dimensional requirements, stainless steel and custom sizes are available. Whether you are working with an unusual opening or a different dispenser configuration, contact PCI to discuss a solution for your installation.

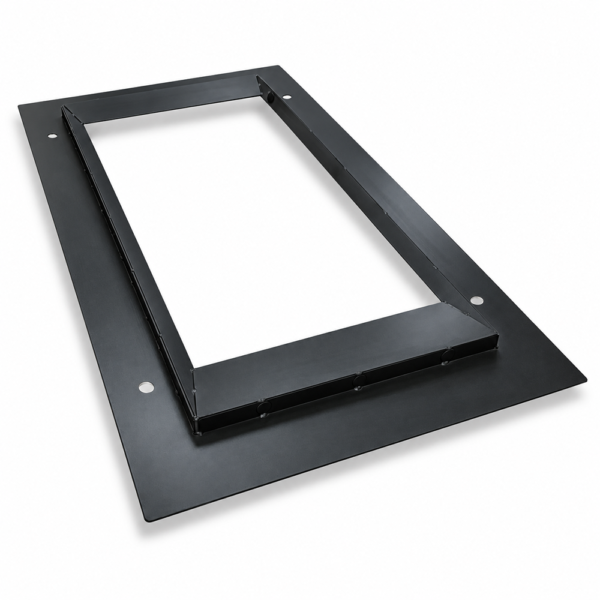

  • PCI dispenser conversion frames and plates simplify upgrades without replacing underground equipment, with heavy-duty steel construction and custom sizing.

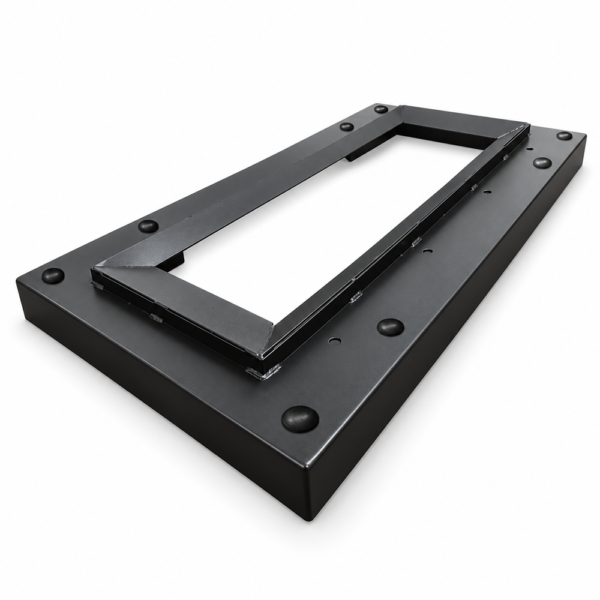

  • PCI dispenser conversion frames and plates simplify upgrades without replacing underground equipment, with heavy-duty steel construction and custom sizing.

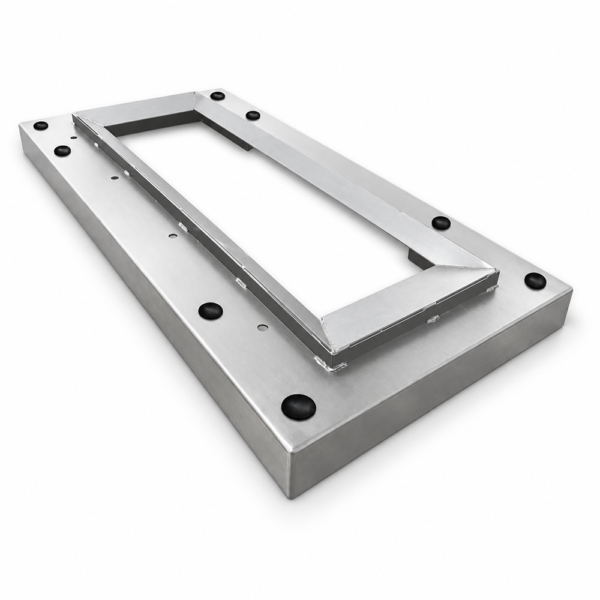

  • PCI dispenser conversion frames and plates simplify upgrades without replacing underground equipment, with heavy-duty steel construction and custom sizing.

Dimensions

Dispenser Model Part No. Width A Width B Height C Length D Length E
Conversion Frames
Gilbarco Encore CFR174001 17.5″ 13″ 3″ 48″ 36″
Wayne Ovation CFR146001 14.5″ 9.5″ 3″ 48″ 42″
Conversion Plates*
Gilbarco Encore CPT174001 17.5″ 13″ 1″ 47″ 36″
Wayne Ovation CPT146001 14.75″ 14.75″ 1″ 47.5″ 42″
Required Hardware
HDW-CFA-4PK Conversion Frame / Plate Anchoring Hardware – 4 Pack

*CPT Series Conversion Plates may require modification of existing frame
Additional Models and options available

Conversion Frame Survey

The conversion frame survey is used to ensure a proper fit with the dispenser and sump in the field to eliminate any installation issues.

Required Information:

  • Sump Make & Model, Burial Type, Existing Anchor Bolts, Rain Lip Height
  • Rain Lip Opening ID (Length & Width)
  • Dispenser Make & Model
