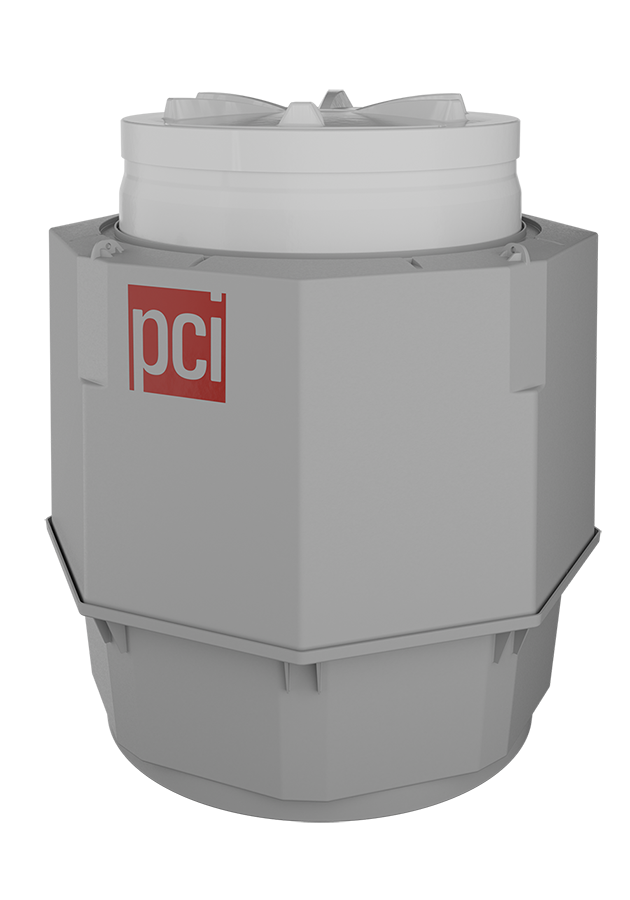

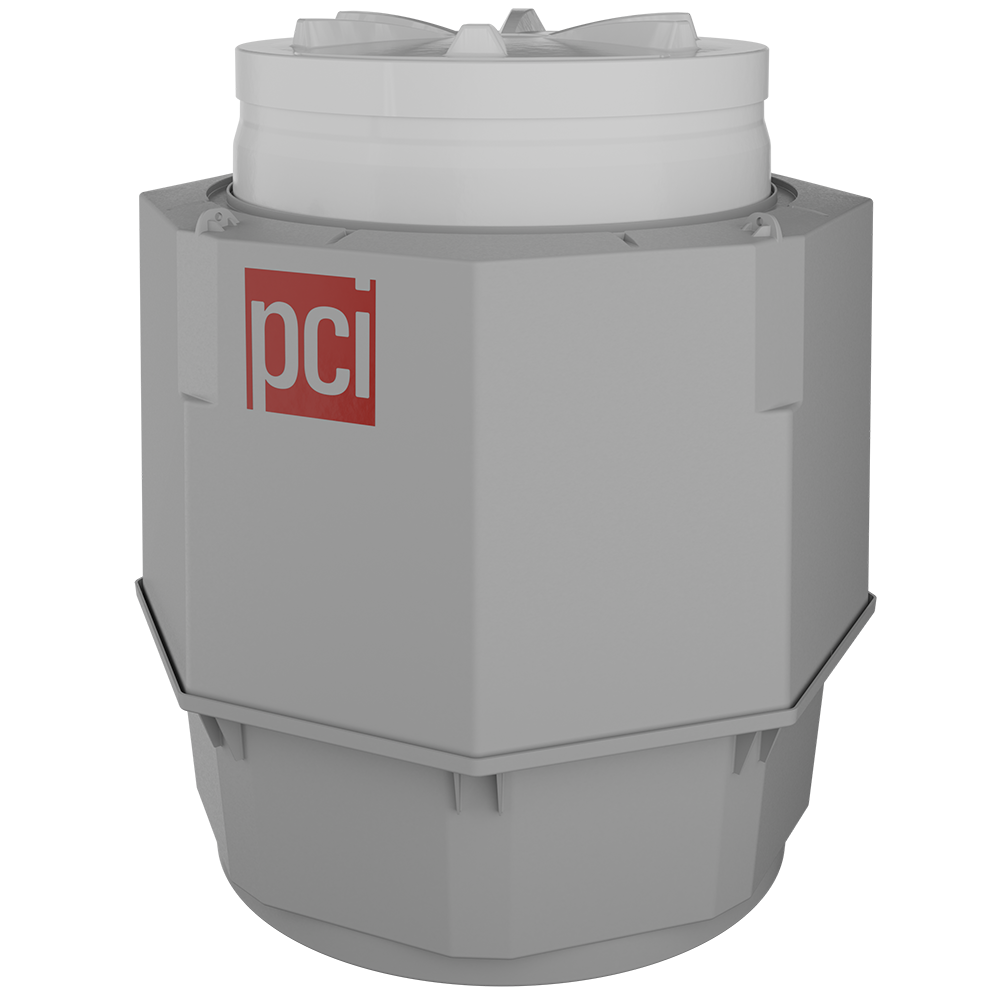

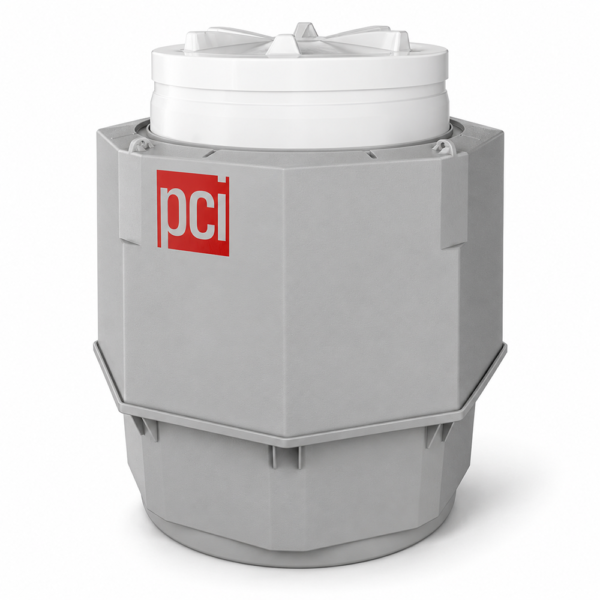

PCS Series Tank Sump
The new PCS Series tank sump is engineered to make on-site installations easy, while keeping shipping costs low and taking up less warehouse space.
Engineered for Quality
The closed-molded design provides a consistent wall thickness with a smooth finish on the inside and outside.
Brite-White Interior
Our signature ‘Brite-White’ interior reflects light for better visibility and makes identifying leak points easier.
Engineered for Logistics

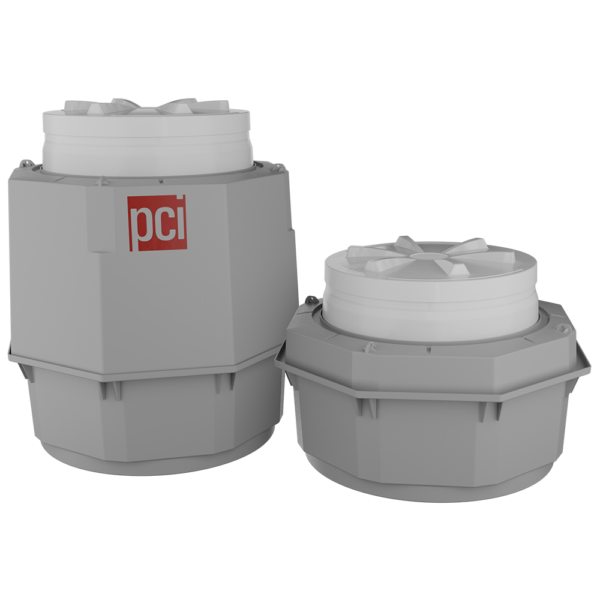

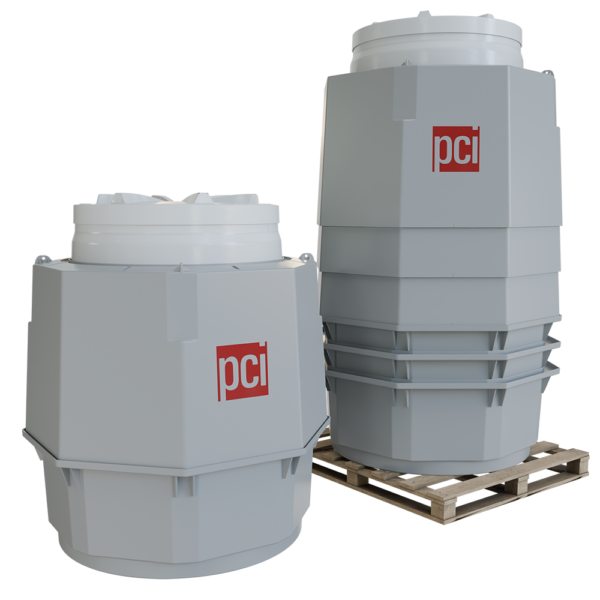

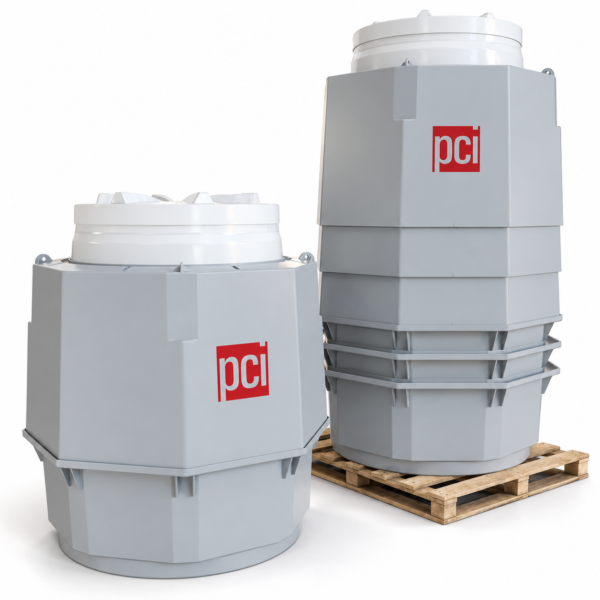

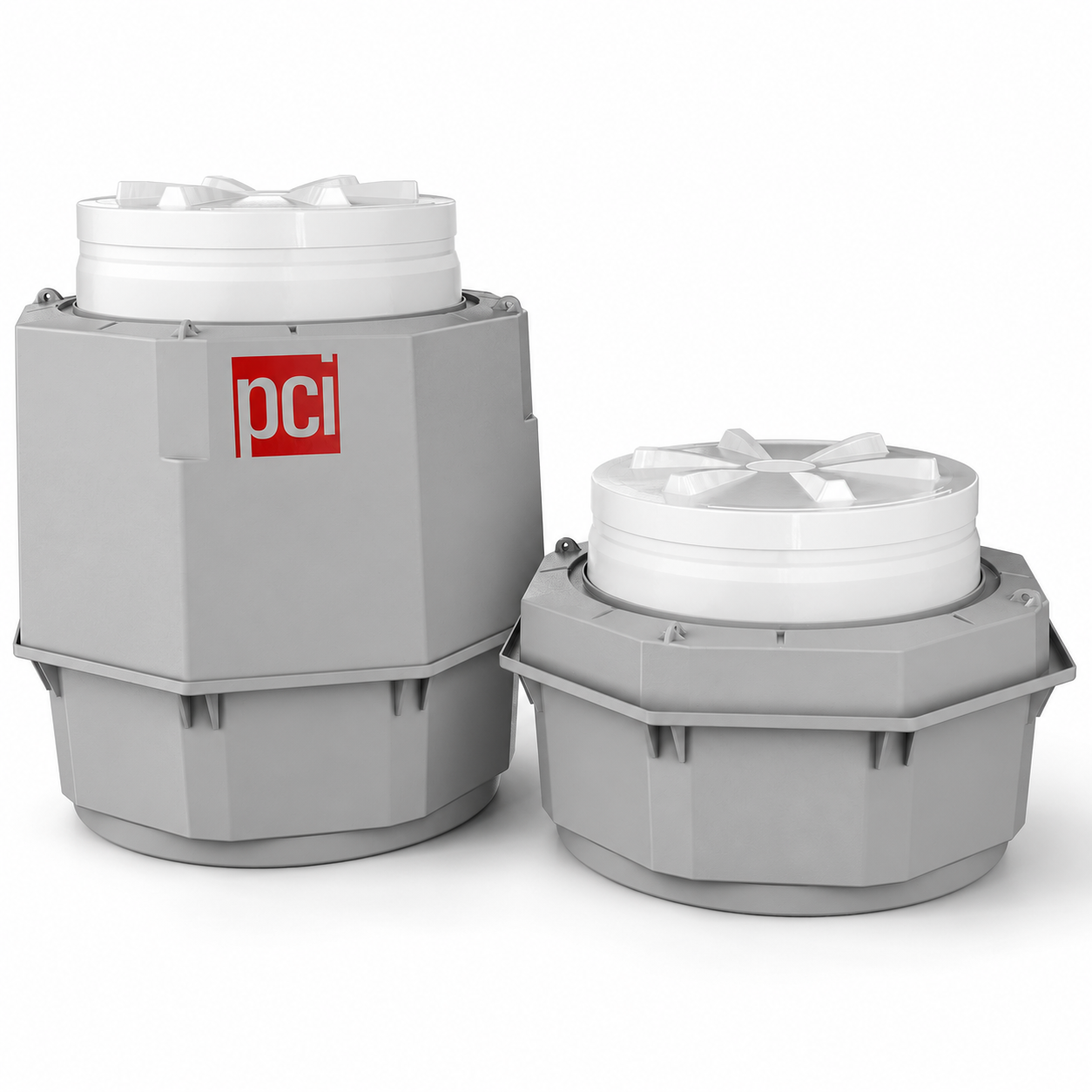

Nestable design and integrated features reduce shipping costs and warehouse space.
More Working Space
10% more working space than the competitor’s 42” tank sump.
Engineered to Last
Manufactured with the most corrosion-resistant composities available ensuring secondary containment dependability for the life of the station.
Standard Features
100% Fiberglass
100% high-quality, non-corrosive fiberglass provides long-term reliable containment from fuel exposure without voiding warranty, warping, cracking or becoming brittle.
‘BRITE-WHITE’ INTERIOR
Our signature ‘Brite-White’ interior reflects light for better visibility and makes identifying leak points easier.
Twist-Lok Access Cover
PCI’s tank sumps come standard with the latest generation of our innovative ‘Twist-Lok’ Access Cover. Constructed from injection molded fiberglass, Twist-Lok lids provide a watertight seal with a quick and easy 12º turn.
Dimensions
| Part No. | Adjustability (A) | Overall Height (B) |
|---|---|---|
| PCS4260 | 2.5” – 29.5” | 32” – 60” |
| Options (Example: PCS4260-XXX) | ||
| -3B0 | Solid Bottom, Twist-Lok Lid, No Bonding Kit | |
| -3B1 | Solid Bottom, Twist-Lok Lid, (1) Epoxy Bonding Kit | |
| -3B2 | Solid Bottom, Twist-Lok Lid, (2) Epoxy Bonding Kits | |
| -3C0 | 42” Collar Mount, Twist-Lok Lid, No Bonding Kit | |
| -3C1 | 42” Collar Mount, Twist-Lok Lid, (1) Epoxy Bonding Kit | |
| -3C2 | 42” Collar Mount, Twist-Lok Lid, (2) Epoxy Bonding Kits | |
*Dimensions are based on Solid Bottom sumps only
**Subtract 1″ if mounting to a 42″ tank collar
Cutsheet
