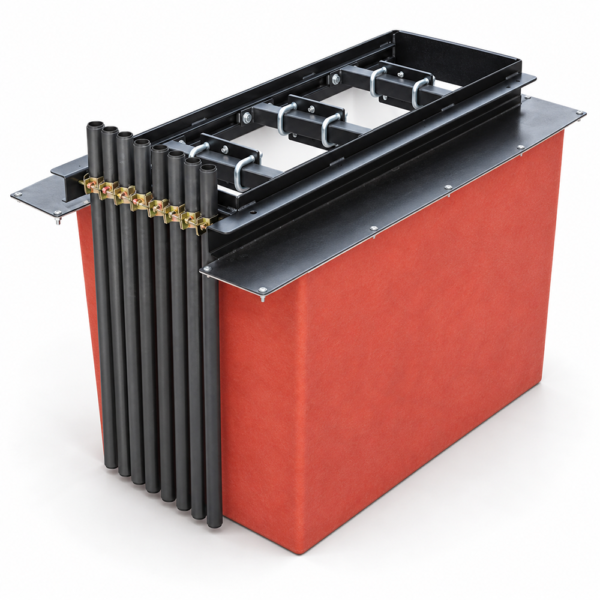

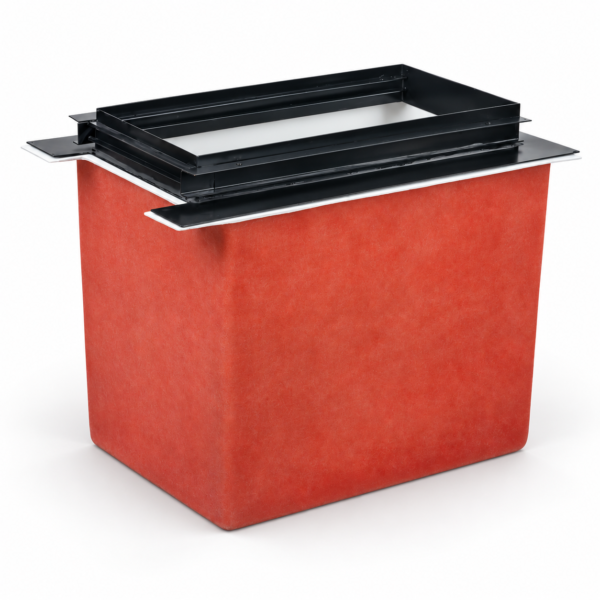

PCI CLE / CLS Series Dispenser Sumps provide secondary containment beneath fuel dispensers, enclosing piping connections, penetration fittings, and shear valves with access for installation, inspection, and service.

A 100% corrosion-resistant fiberglass sump body and heavy-gauge steel frame provide a durable foundation. Conduitless entry, a nestable design, and multiple dispenser configurations simplify installation and handling.

Room for Multiple Product Entries

Extended sump walls provide room for up to five product entries on applicable models, accommodating multiple product lines beneath the dispenser.

Heavy-Gauge Steel Frame

The steel frame provides strength and rigidity and is designed to lock into the concrete foundation for secure dispenser mounting.

Single Conduitless Entry

Conduit can enter the bottom of the dispenser without penetrating the sump walls, reducing the number of penetration fittings and potential entry points for outside moisture.

Single-Piece Sump Body

The fiberglass body is constructed as a single piece, eliminating body seams and supporting dependable containment.

Duo-Molded Fiberglass Construction

PCI’s Duo-Molded Technology combines two layers of fiberglass with high glass content for strength and fuel resistance.

Brite-White Interior

PCI’s Brite-White interior reflects light for better visibility and helps identify leak points during inspection and service.

Universal Stabilizer Bars

Universal stabilizer bars provide three-axis adjustment to accommodate multiple product lines without displacing piping. The assembly supports proper load transfer during dispenser impact and is ordered separately.

Composite Rainlip

A 1-inch composite rainlip helps prevent surface runoff from entering the sump and resists rust and corrosion. Rainlip availability varies by model.

Nestable Design

Multiple sumps nest together to reduce shipping volume and warehouse space, helping lower freight costs and simplify inventory handling.

Factory Pre-Plumbed Options

Full and partial factory pre-plumbing are available to reduce field assembly and installation time. Each pre-plumbed sump is built to your specifications and hydrostatically and pressure tested before shipment.

Double Wall Options

Double wall models are available for installations requiring interstitial monitoring, with configurations supporting dry, vacuum, or fluid-filled monitoring. Required monitoring accessories are ordered separately.

DEF Configurations

For dispensers handling fuel and diesel exhaust fluid, PCI’s DEF Series offers a dual-compartment configuration.

Dispenser Compatibility

Models are available for Bennett, Gasboy, Gilbarco, and Wayne dispensers. Refer to the model specifications for dispenser fit, dimensions, and stabilizer kit requirements.

Specifications and Installation Resources

Download the product brochure and installation instructions for model dimensions, dispenser compatibility, component options, and installation requirements.

Pre-Plumbed Service Available

PCI’s Dispenser Sumps are available with completely customizable pre-plumb service built to customer’s specifications. Our pre-plumb dispenser sumps include all internal piping from the shear valve to penetration, eliminating the need for any additional field labor.

Double Wall Options Available

Available in double wall for a variety of monitoring options to satisfy local regulations and requirements. From dry fluid or fluid filled interstitial to vacuum interstice monitoring, PCI has all options to best fit your installation and compliance needs.

Brochure

Installation Instructions

UL® Listed 2447

California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)

State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
