Repair Penetration Fitting

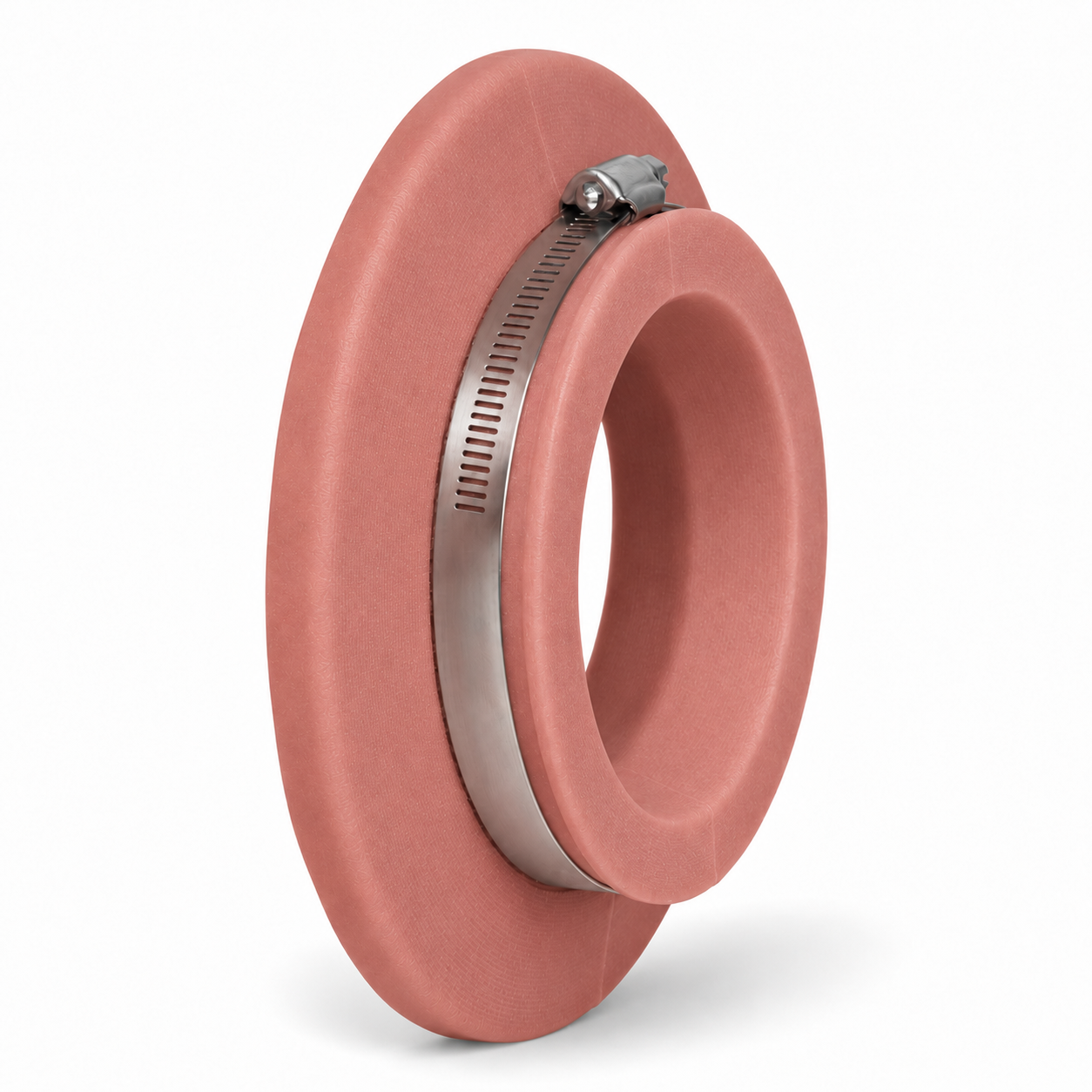

SRB (Split Repair with Band Clamp) – Oversized

Repair Fitting

The intentional design of the SRB Repair Fittings makes repairs straight forward and allows for field modification. The oversized model is designed to eliminate the need to pair the SRB with our BSO fitting.

Band Clamp w/ Retention Rim
The stainless steel band clamp holds the fitting in place and the retention rim prevents the clamp from sliding off the fitting while the epoxy cures.

Fiberglass Sleeve*
A fiberglass sleeve is included with flex pipe models. This is used to bond to polyethylene with our Clear Magic adhesive to create a permanent fiberglass-to-fiberglass installation.

Fiberglass Sleeve for Flex Pipe

Field Modifiable
The SRB series can be modified in the field to simplify service work.

UL Listed 2447

Oversized SRB Fitting

Standard Features

Long-Term Solution

100% fiberglass construction provides superior strength and ensures the fitting will withstand long-term exposure to all fuels, including ethanol.

Allows for Misalignment

Works with angled pipe entries up to 20° for job site adaptability allowing room for misalignment.

Cost-Effective

PCI’s penetration fittings are the most affordable fiberglass fittings on the market, with a similar cost to rubber or plastic fittings.

Options

EP2A – Epoxy Bonding

EP2A is two-part epoxy available to bond fiberglass penetration fittings to fiberglass and steel. Due to its thickened consistency, It has great gap filling properties and excellent sag resistance, making it a simple and dependable bonding solution.

Clear Magic – Bonds Fiberglass to Polyethelyene

Clear Magic, PCI’s proprietary three-part adhesive, can be used with any of our fiberglass fittings to permanently bond fiberglass to polyethylene.

Dimensions

Pipe Flat Wall Round Wall ID OD
3/4” Galv. Conduit PF-SRB-2F-C8 PF-SRB-2R-C8 1.1″ 8″
1” Galv. Conduit PF-SRB-2F-C1 PF-SRB-2R-C1 1.4″ 8″
2″ RTIIA PF-SRB-2F-R2 PF-SRB-2R-R2 2.4″ 8″
3″ RTIIA PF-SRB-2F-R3 PF-SRB-2R-R3 3.6″ 8″
4″ RTIIA PF-SRB-2F-R4 PF-SRB-2R-R4 4.8″ 8″
2″ LCX PF-SRB-2F-L2 PF-SRB-2R-L2 2.7″ 8″
3″ LCX PF-SRB-2F-L3 PF-SRB-2R-L3 3.8″ 8″
4” LCX PF-SRB-2F-L4 PF-SRB-2R-L4 4.6″ 8″
1.5” O.D. Flex Pipe PF-SRB-2F-P15* PF-SRB-2R-P15* 1.7″ 8″
2” O.D. Flex Pipe PF-SRB-2F-P20* PF-SRB-2R-P20* 2.2″ 8″
2.5” O.D. Flex Pipe PF-SRB-2F-P25* PF-SRB-2R-P25* 2.7″ 8″

*Flex Pipe SRB Models include the Fiberglass Sleeve to Bond to Polyethylene.

Downloads

Regulatory

UL® Listed 2447

California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)

State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
