CLE / CLS SERIES
DISPENSER SUMP
PCI’s CLE / CLS dispenser sumps offer quality and dependability in a fiberglass constructed body with a heavy gauge steel frame. It is also available with a dual compartment for DEF in our DEF series.
5-Product Entries
Extra long sump wall has room for up to five product entries.
Heavy-Gauge Steel Frame
The dispenser sump frame is manufactured from heavy gauge steel, providing strength and rigidity, and is designed to lock into the concrete foundation.
Single Conduitless Entry
Conduit is allowed to enter into the bottom of the dispenser without penetrating the sump walls. Less entries require less penetration fittings and provide less risk for water intrusion.
Nestable
Multiple sumps can be stacked and nested together to significantly reduce shipping costs and simplify inventory by storing more sumps on less pallets.
Standard Features
Duo-Molded Technology
Our fiberglass sumps utilizes Duo-Molded Technology. Using premium raw materials with a high glass content, we create two layers of fiberglass, offering superior strength and fuel resistance.
‘BRITE-WHITE’ INTERIOR
Our signature ‘Brite-White’ interior reflects light for better visibility and makes identifying leak points easier.
100% Fiberglass
100% high-quality, non-corrosive fiberglass provides long-term reliable containment from fuel exposure without voiding warranty, warping, cracking or becoming brittle.
UNIVERSAL STABILIZER BARS
Universal stabilizer bars with 3-axis adjustment accommodate multi-product dispensers without displacing product lines and ensure proper load transfer in case of an impact from any direction.
SINGLE PIECE CONSTRUCTION
Constructed as a single piece which eliminates any seams, providing less places for water penetration.
1″ COMPOSITE RAINLIP
1″ Composite Rainlip protrudes from the bottom of the dispenser to prevent surface water from entering the sump. This also offers better protection against rust and corrosion than metallic rainlips.
Optional Features
Pre-Plumbed Service Available
PCI’s Dispenser Sumps are available with completely customizable pre-plumb service built to customer’s specifications. Our pre-plumb dispenser sumps include all internal piping from the shear valve to penetration, eliminating the need for any additional field labor.
Double Wall Options Available
Available in double wall for a variety of monitoring options to satisfy local regulations and requirements. From dry fluid or fluid filled interstitial to vacuum interstice monitoring, PCI has all options to best fit your installation and compliance needs.

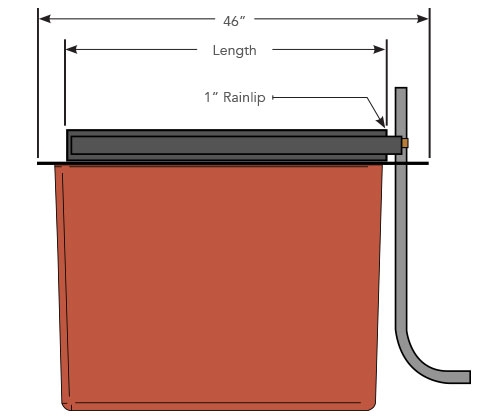

Dimensions
| Dispenser | Single Wall | Double Wall | Width | Length | Stabilizer Kit |
|---|---|---|---|---|---|
| Bennett Pacific |
CLE146390B |
CLEDW146390B |
14.75″ | 39″ | SVU-L |
| Bennett 3000 | CLS120206 | CLSDW120206 | 12″ | 20.75″ | SVU-S |
| Gasboy Atlas | CLS120206A | CLSDW120206A | 12″ | 20.75″ | SVU-S |
| Gilbarco Encore | CLE174375 | CLEDW174375 | 17.5″ | 37.5″ | SVU-L |
| Gilbarco Legacy | CLS120206X | CLSDW120206X | 12″ | 20.75″ | SVU-S |
| Wayne Century | CLE154260 | CLEDW154260 | 15.5″ | 26″ | SVU-L |
| Wayne Reliance | CLS154260R | CLSDW154260R | 15.5″ | 26″ | SVU-L |
| Wayne Select | CLS154260 | CLSDW154260 | 15.5″ | 26″ | SVU-L |
| Wayne Ovation | CLE146390 | CLEDW146390 | 14.75″ | 39″ | SVU-L |
| Wayne Vista (UHC) HS3, HS4 | CLS154294 | CLSDW154294 | 15.5″ | 29.5″ | SVU-L |
| Wayne Vista 48″ | CLS154294 | CLSDW154294 | 11.25″ | 37.5″ | SVU-S |
| Wayne Helix 36″ | CLS170260 | CLSDW170260 | 17″ | 26″ | SVU-L |
| Wayne Helix 48″ | CLE170365 | CLEDW170365 | 17″ | 36.625″ | SVU-L |
Additional Models Available
Additional Double Wall AcceSsories (ordered Separately)
| Part No. | Description |
|---|---|
| EQP-DW-VAC | Vacuum Kit (Required for all Double Wall Sumps) |
| EQP-IF-5GAL | Interstitial Fluid, 5 Gallons (Required for Double Wall Sumps with Fluid Filled Interstice) |
| EQP-IF-ADP-UC | Interstitial Fluid Adapter Kit ( 1 Per Sump, Required for Double Wall Dispenser & Grade Level Transition Sumps with Fluid Filled Interstice) |
To learn more about Double Wall Dispenser Sumps, Visit the Double Wall page »
Downloads
Brochure
Installation InstructionsRegulatory
UL® Listed 2447
California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)
State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
