Legacy Fiberglass Tank Collars

PCI Legacy Tank Collars provide a rigid mounting foundation for tank sumps in new construction and retrofit installations. Built from 100% corrosion-resistant fiberglass, they connect the sump to the underground storage tank and provide stability during installation, inspection, and service.

PCI’s traditional tank collars remain fully supported and available upon request for customers who prefer the legacy design.

Stable Tank Sump Mounting

Rigid fiberglass construction provides a sturdy foundation for the sump, including support while personnel enter and exit for installation and maintenance.

Pre-Cut for Tank Fit

Legacy collars are pre-cut to match the tank diameter, simplifying installation and reducing field modification. Select the model that matches the tank size and sump configuration.

Compatible with Multiple Tank Materials

PCI Legacy Tank Collars can be installed directly onto fiberglass, steel, and jacketed tanks. Fiberglass and epoxy bonding kit options support watertight installation.

100% Fiberglass Construction

Corrosion-resistant fiberglass provides a durable mounting structure for long-term service in underground containment applications.

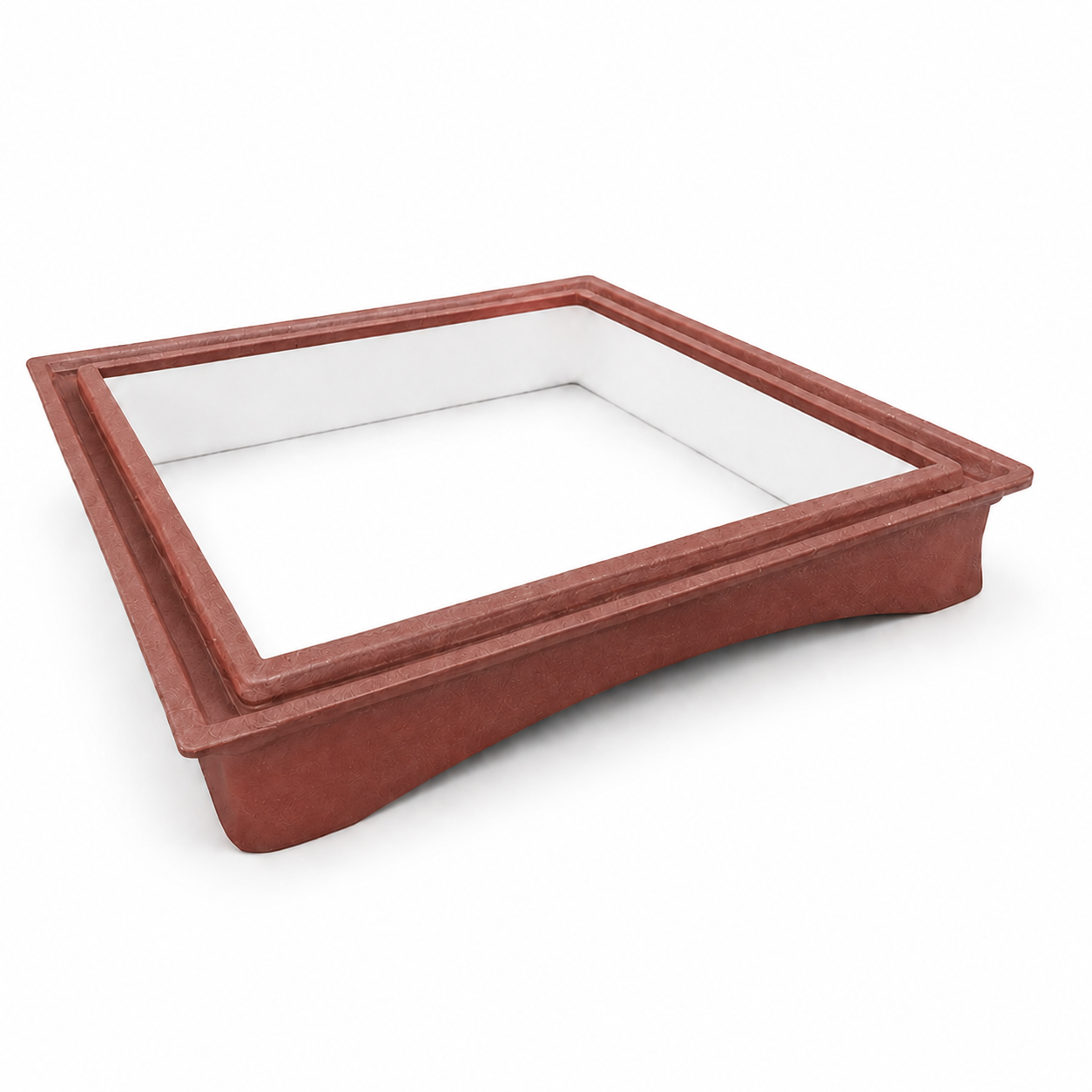

Round and Square Collar Options

Available configurations include:

42-inch round collars
48-inch round collars
42 × 42-inch square collars
48 × 48-inch square collars

Model dimensions and tank fit vary by configuration.

Double Wall Options

Double wall round collars are available for installations requiring interstitial monitoring. Available configurations support dry, vacuum, or fluid-filled monitoring requirements.

Nestable Design

The nestable design reduces space requirements during shipping and storage, helping lower freight costs and simplify inventory handling.

Specifications and Installation Resources

Download the legacy collar brochure and installation instructions for model dimensions, tank compatibility, bonding options, and installation requirements.

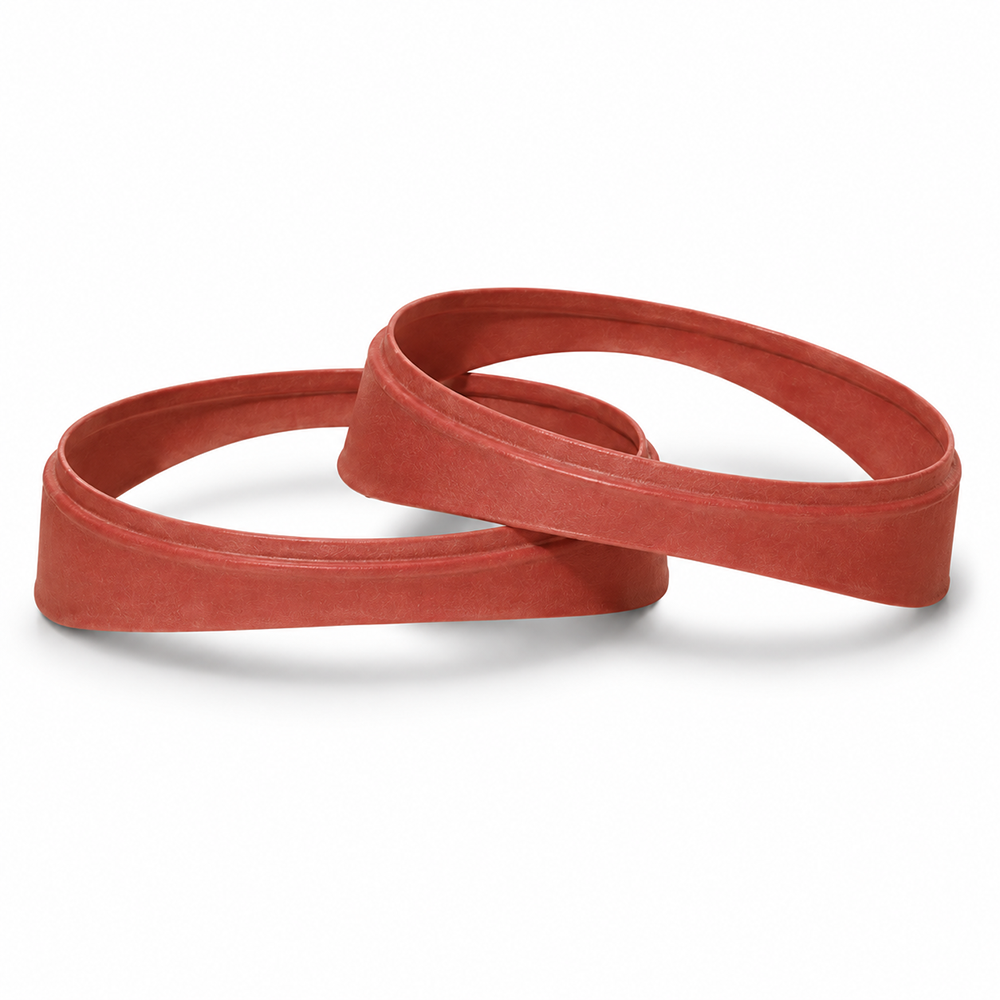

PCI tank collars feature durable fiberglass construction for a dependable connection between underground storage tanks and containment sumps.

Fiberglass tank collars for secure, long-lasting tank sump installation and secondary containment.

100% Fiberglass

100% high-quality, non-corrosive fiberglass provides long-term reliable containment from fuel exposure without voiding warranty, warping, cracking or becoming brittle.

Duo-Molded Technology

Our fiberglass sumps utilizes Duo-Molded Technology. Using premium raw materials with a high glass content, we create two layers of fiberglass, offering superior strength and fuel resistance.

Dimensions

Single Wall	Double Wall	Description	ID	OD	Height
42″ Round Tank Collars
4206CL-5	CLDW4206-5	42″ Tank Collar, Fits 5′ Tanks	40.5″	45.2”	15.5”
4206CL-6	CLDW4206-6	42″ Tank Collar, Fits 6′ Tanks	40.5″	44.9”	13.1”
4206CL-7	CLDW4206-7	42″ Tank Collar, Fits 7′ Tanks	40.5″	44.7”	11.7”
4206CL-8	CLDW4206-8	42″ Tank Collar, Fits 8′ Tanks	40.5″	44.6”	10.8”
4206CL-9	CLDW4206-9	42″ Tank Collar, Fits 9′ Tanks	40.5″	44.5”	10.1”
4206CL-10	CLDW4206-10	42″ Tank Collar, Fits 10′ Tanks	40.5″	44.5”	9.5”
4206CL-12	CLDW4206-12	42″ Tank Collar, Fits 12′ Tanks	40.5″	44.4”	8.8”
48″ Round Tank Collars
4806CL-5	CLDW4806-5	48″ Tank Collar, Fits 5′ Tanks	47″	51.7”	20”
4806CL-6	CLDW4806-6	48″ Tank Collar, Fits 6′ Tanks	47″	51.2”	15.9”
4806CL-7	CLDW4806-7	48″ Tank Collar, Fits 7′ Tanks	47″	51”	13.9”
4806CL-8	CLDW4806-8	48″ Tank Collar, Fits 8′ Tanks	47″	50.8”	12.5”
4806CL-9	CLDW4806-9	48″ Tank Collar, Fits 9′ Tanks	47″	50.7”	11.6”
4806CL-10	CLDW4806-10	48″ Tank Collar, Fits 10′ Tanks	47″	50.6”	10.9”
4806CL-12	CLDW4806-12	48″ Tank Collar, Fits 12′ Tanks	47″	50.5”	9.8″

Part No.	Description
42” x 42” Square Collar
CL4242-5	42×42” Square Collar, Fits 5′ Tanks
CL4242-6	42×42” Square Collar, Fits 6′ Tanks
CL4242-7	42×42” Square Collar, Fits 7′ Tanks
CL4242-8	42×42” Square Collar, Fits 8′ Tanks
CL4242-9	42×42” Square Collar, Fits 9′ Tanks
CL4242-10	42×42” Square Collar, Fits 10′ Tanks
CL4242-12	42×42” Square Collar, Fits 12′ Tanks
48” x 48” Square Collar
CL4848-5	48×48” Square Collar, Fits 5′ Tanks
CL4848-6	48×48” Square Collar, Fits 6′ Tanks
CL4848-7	48×48” Square Collar, Fits 7′ Tanks
CL4848-8	48×48” Square Collar, Fits 8′ Tanks
CL4848-9	48×48” Square Collar, Fits 9′ Tanks
CL4848-10	48×48” Square Collar, Fits 10′ Tanks
CL4848-12	48×48” Square Collar, Fits 12′ Tanks
