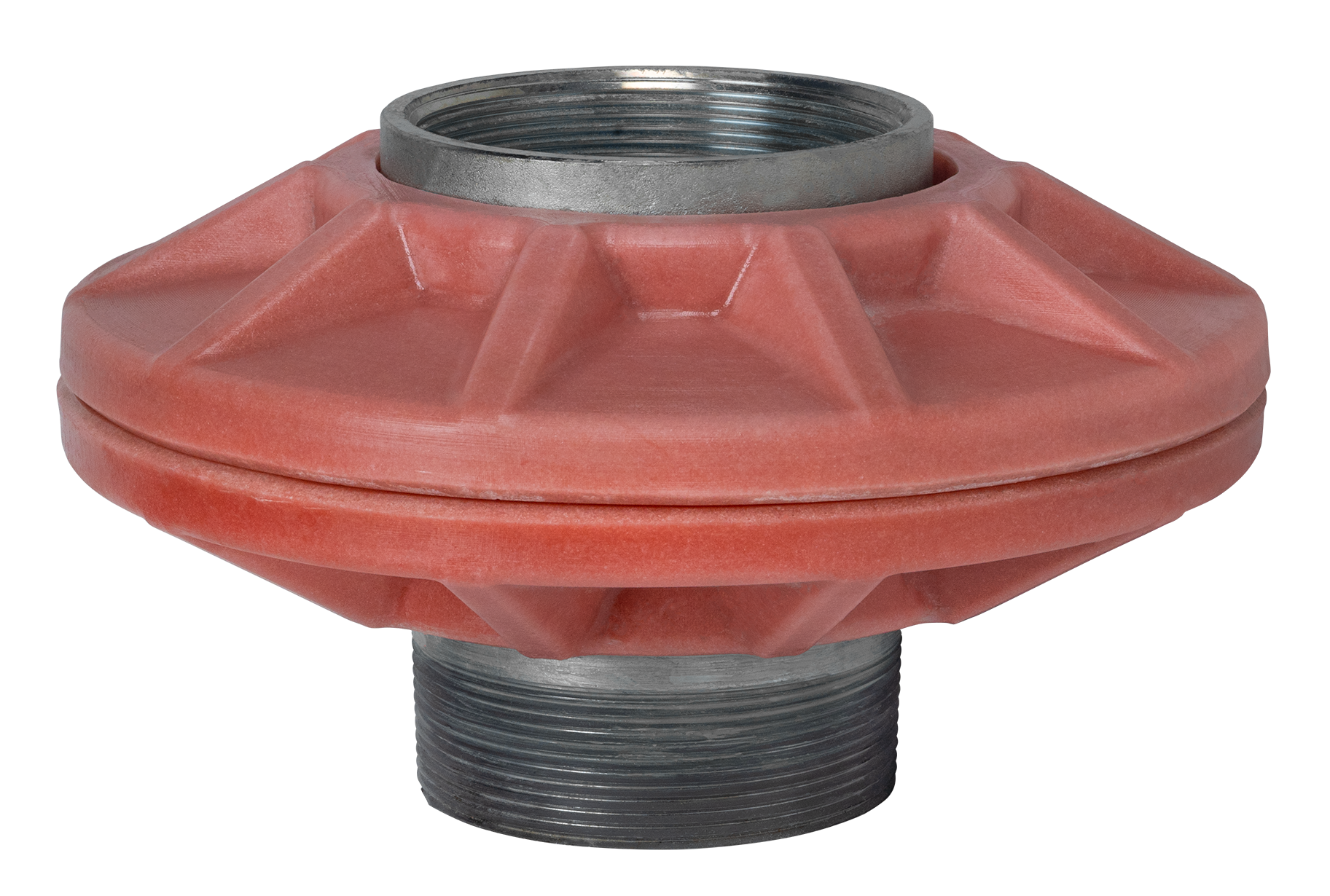

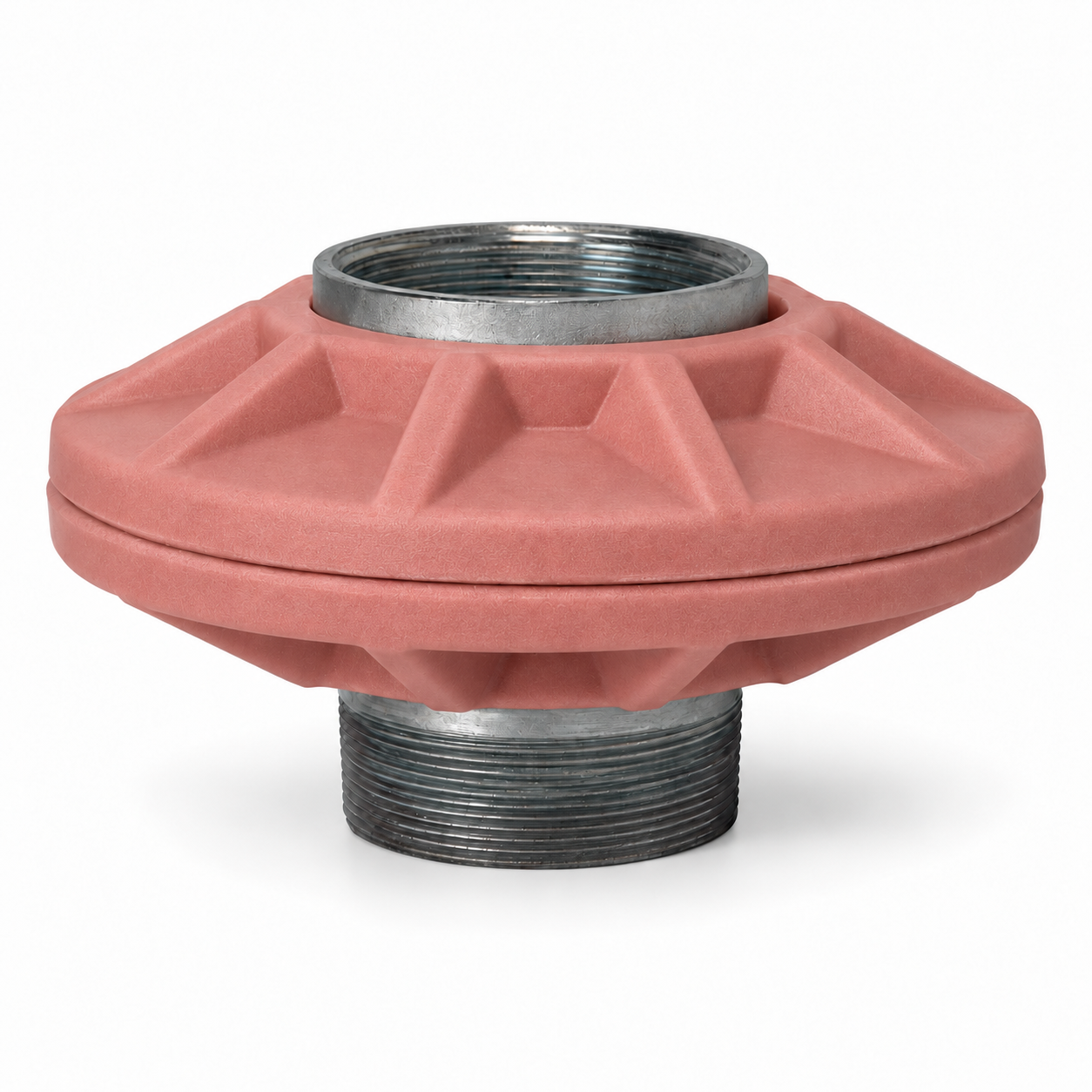

The PCI TSA Series Tank Sump Adapter provides a secure, economical mounting option for installations where a collar-mounted sump is not practical. Designed for retrofit applications, the TSA allows a secondary containment sump to be installed on an existing tank.

Its fiberglass composite flange resists corrosion and protects steel pipe fittings, providing a durable connection between the tank and sump.

Retrofit Sump Installation

The TSA adapts the tank for installation of a secondary containment sump, offering an alternative when the site does not accommodate a tank collar.

Fiberglass Composite Flange

The thick fiberglass composite flange provides a durable mounting surface and eliminates the need to drill bolt holes in the sump bottom.

Corrosion-Resistant Construction

Composite construction eliminates flange corrosion and helps protect steel pipe fittings. Stainless steel options are available for applications requiring additional corrosion resistance.

Cost-Effective Mounting Option

The TSA provides an economical approach to installing a watertight tank sump where collar mounting is not feasible.

Product and Installation Fixture

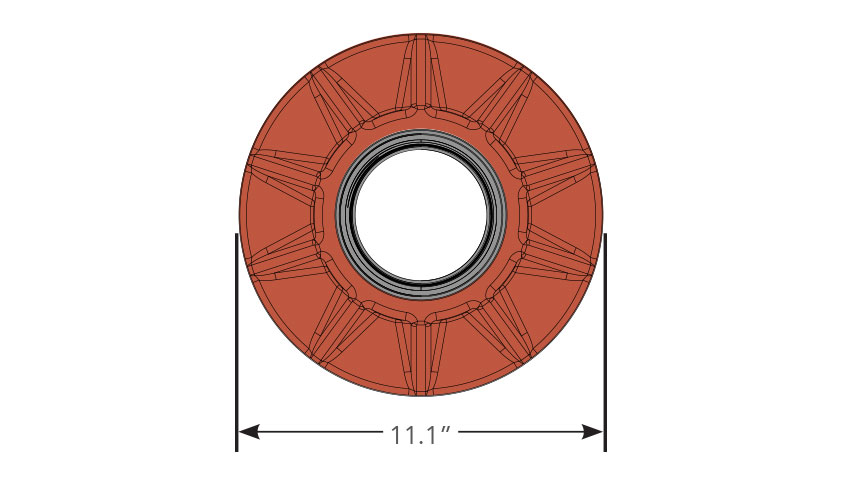

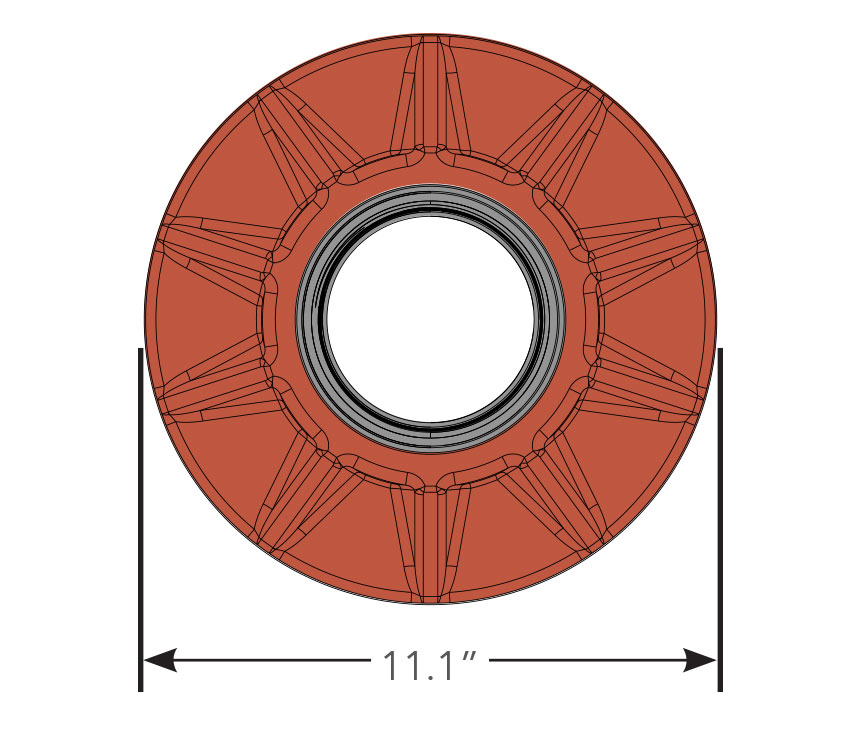

• TSA400: 4-inch Tank Sump Adapter with an 11.1-inch outside diameter.
• TSA400-IF: 4-inch Tank Sump Adapter Installation Fixture, ordered separately.

Specifications and Installation Resources

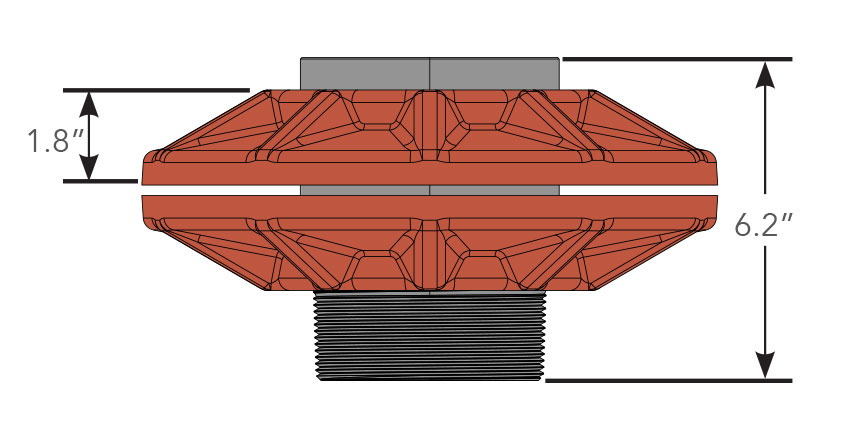

Download the product brochure and installation instructions for dimensions, component information, and installation requirements.

Brochure

Installation Instructions

UL® Listed 2447

California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)

State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
