Pre-Plumbed Service
Dispenser Sumps

Include Internal Piping
PCI’s True Pre-Plumb service includes all internal piping from the shear valve to penetration.

Customizable
Our pre-plumb selection guide allows you to customize your dispenser and ensure it’s built to customer’s specifications.

Partial or Full Pre-Plumb Options
Depending on the sites installation needs, we can create a full or partial pre-plumbed sump.

Factory Tested
Full pre-plumb dispenser sumps are completely hydrostatically and pressure tested prior to shipment eliminating the need for any field labor.

  • Pre Plumb Dispenser Sump
  • Partial Pre Plumbed Dispenser Sump

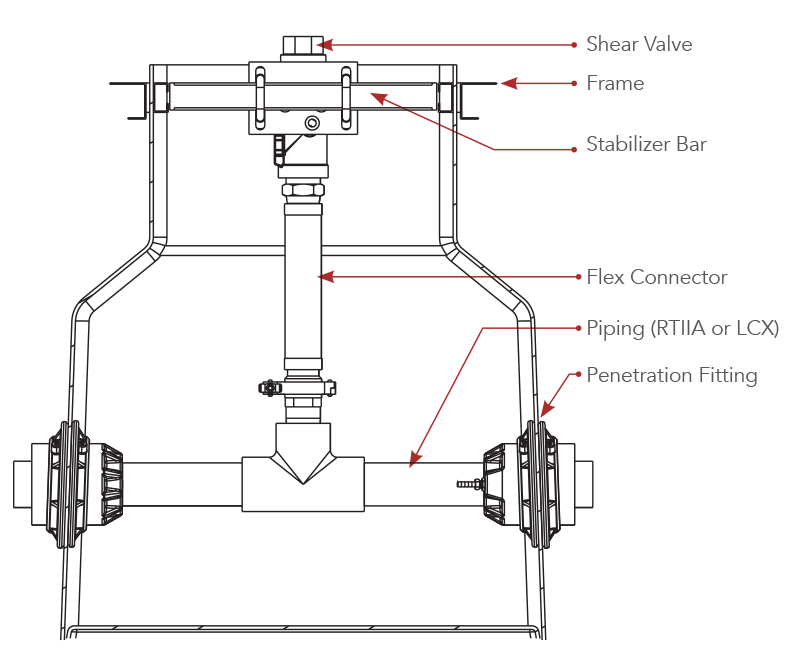

Full Pre-Plumbed Service

Shear Valve to Penetration
• Available for Fiberglass Pipe

Partial Pre-Plumbed Service

Shear Valve to Flex Connector
• Available for Flex, Fusion and Fiberglass Pipe

Ordering Requirements

Submit Pre-Plumb Selection Guide

The Pre-Plumb selection guide allows you to completely customize your pre-plumbed dispenser.

  • Dispenser Model & Product Configuration
  • Penetration Fitting
  • SVA Material (Powder Coated or Stainless Steel)
  • Frame Material (Galvanized or Stainless Steel)
  • Piping
  • Sump Type
  • Flex Connector
  • Shear Valve
Pre-Plumb Selection Guide

Built to your Specifications

PCI reviews your selection guide and creates a custom dispenser sump based on your specifications. It is built through our repeatable and controlled production process. Prior to shipment, the sump is hydrostatically and pressure tested.

Standard Features

Duo Molded Technology

Duo-Molded Technology

Our fiberglass sumps utilizes Duo-Molded Technology. Using premium raw materials with a high glass content, we create two layers of fiberglass, offering superior strength and fuel resistance.

‘BRITE-WHITE’ INTERIOR

Our signature ‘Brite-White’ interior reflects light for better visibility and makes identifying leak points easier.

100% Fiberglass

100% high-quality, non-corrosive fiberglass provides long-term reliable containment from fuel exposure without voiding warranty, warping, cracking or becoming brittle.

Universal stabilizer bars

Universal stabilizer bars with 3-axis adjustment accommodate multi-product dispensers without displacing product lines and ensure proper load transfer in case of an impact from any direction.

Single Piece Construction

Constructed as a single piece which eliminates any seams, providing less places for water penetration.

1″ Composite Rainlip

1″ Composite Rainlip protrudes from the bottom of the dispenser to prevent surface water from entering the sump. This also offers better protection against rust and corrosion than metallic rainlips.

Downloads

Regulatory

UL® Listed 2447

California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)

State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
