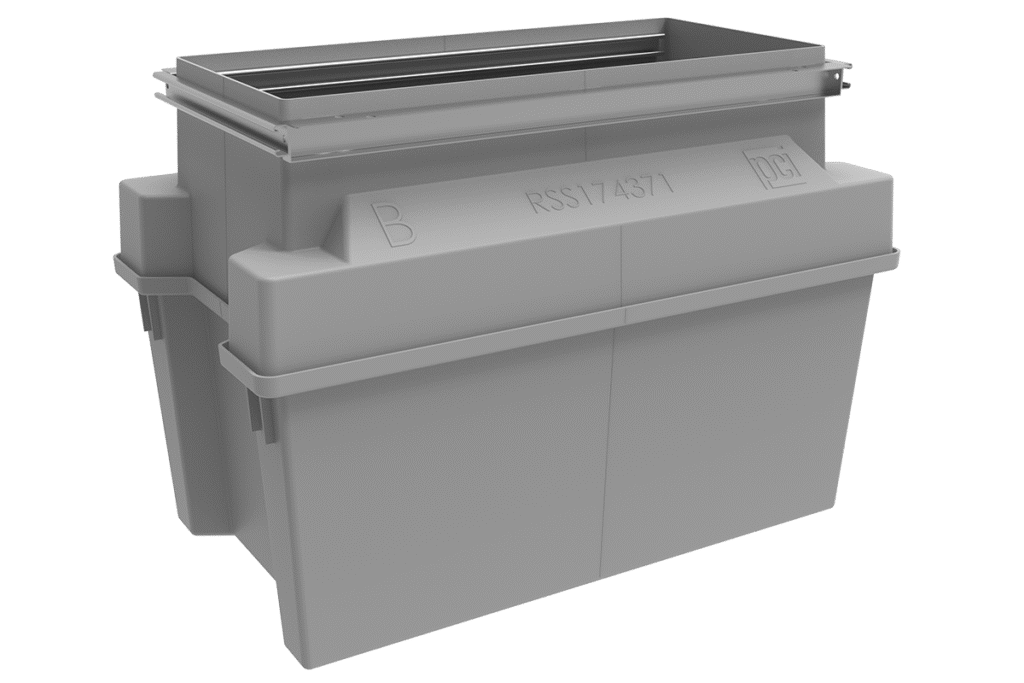

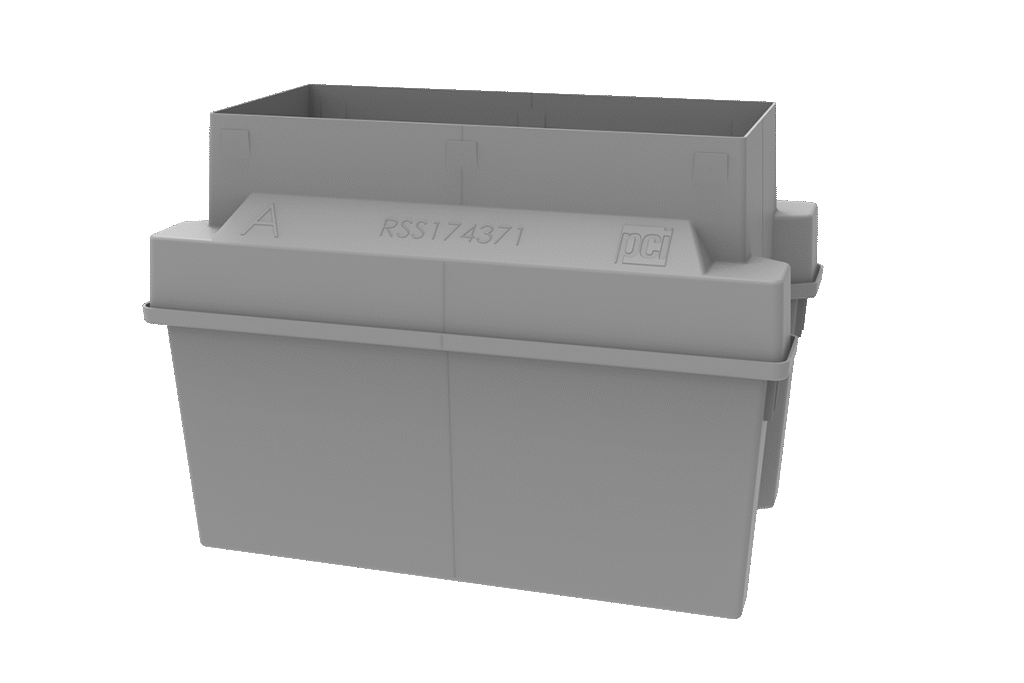

RSS Series Dispenser Sump
The RSS Series Dispenser Sump is built with the same closed-mold fiberglass technology as our PCS Series Tank Sumps, delivering consistent quality, durability, and watertight performance. Made from 100% fiberglass, it offers superior chemical resistance, structural strength, and long-term reliability in the field.
Engineered for Quality
The closed-molded design provides a consistent wall thickness with a smooth finish on the inside and outside.
Engineered for Logistics
Nestable design and integrated features reduce shipping costs and warehouse space.
100% Fiberglass
100% high quality, non-corrosive fiberglass provides long-term reliable containment from fuel exposure without warping, cracking or becoming brittle.
Dual Condiutless Entry
Designed to seamlessly accommodate either conduitless entry configuration without additional adapters.
Height-adjustable Riser
Trim on-site for a perfect fit to any dispenser height, ensuring a clean, precise installation.

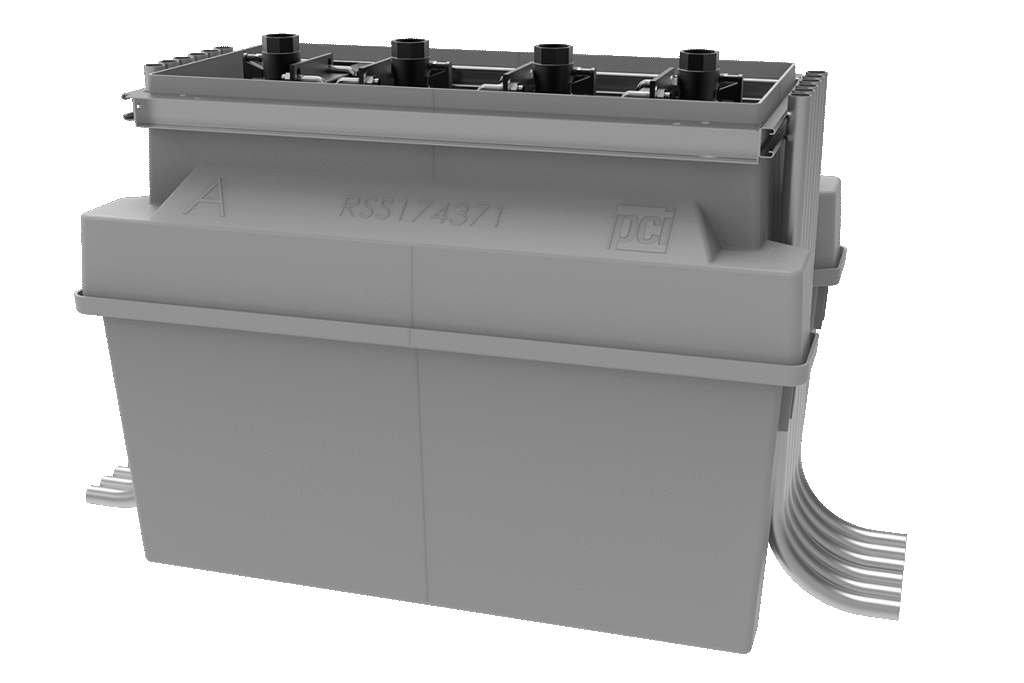

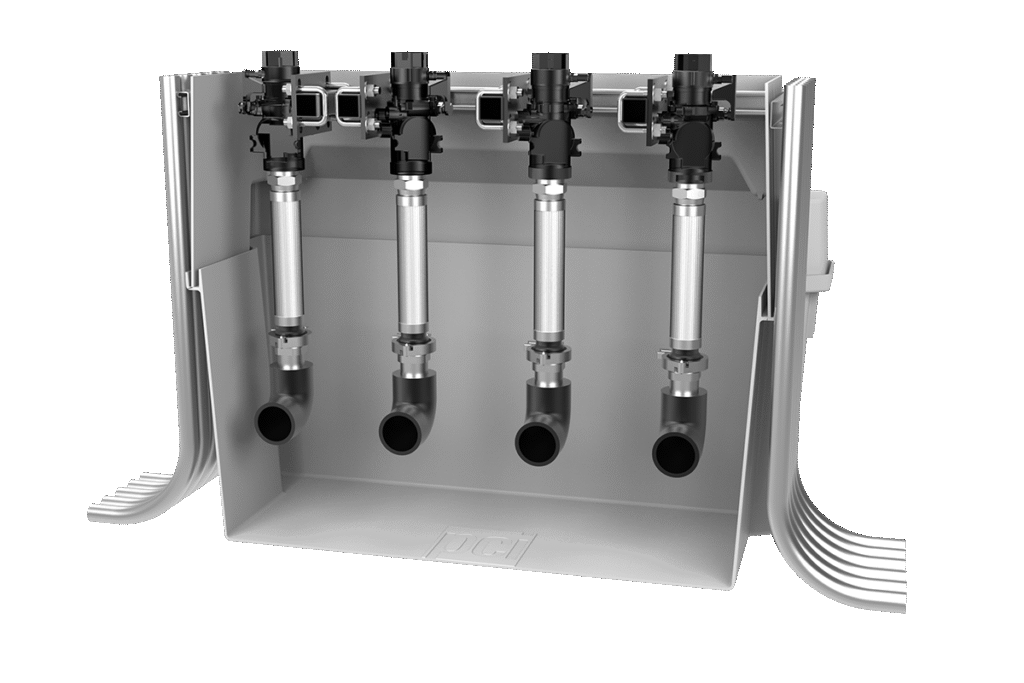

Pre-plumbed Options Available
RSS series sumps can be configured with or without factory pre-plumbed service.
Standard Features
100% Fiberglass
100% high-quality, non-corrosive fiberglass provides long-term reliable containment from fuel exposure without voiding warranty, warping, cracking or becoming brittle.

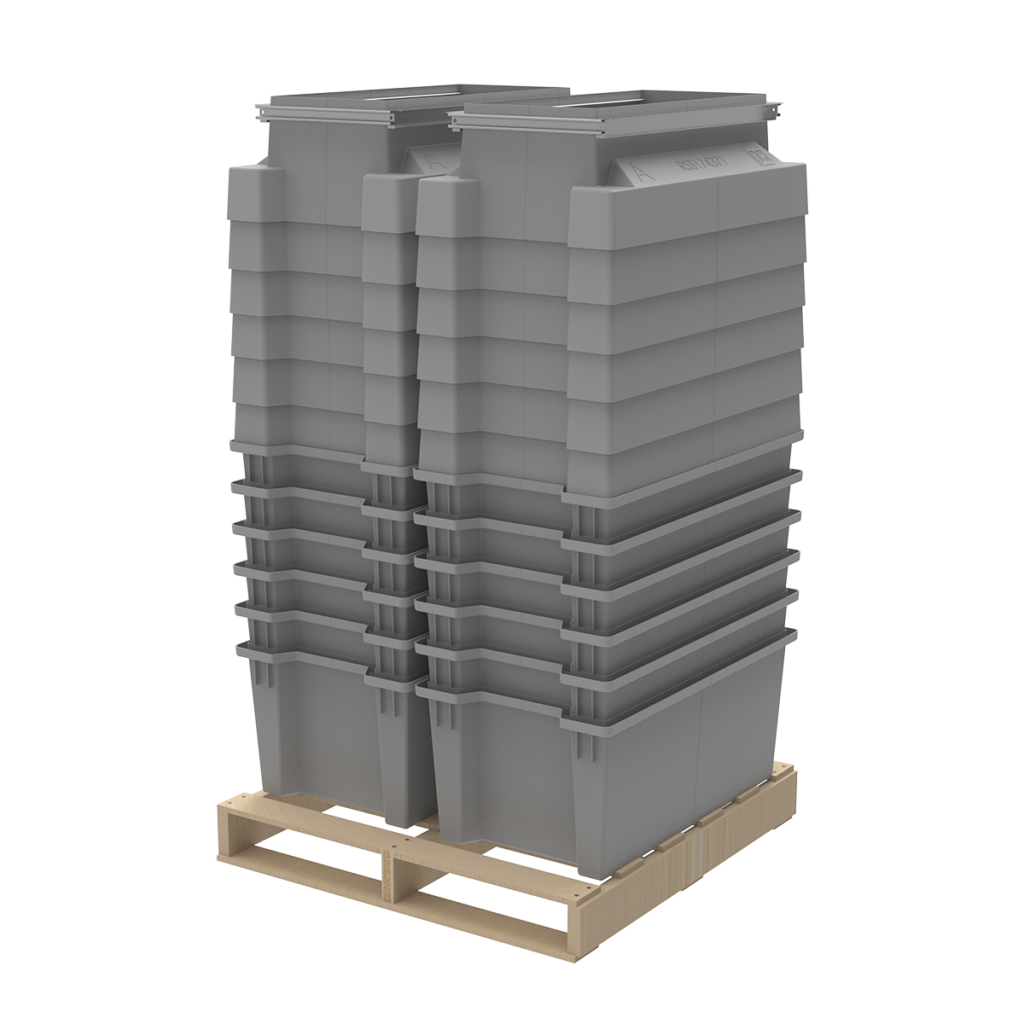

Space Saving Design
Engineered with nestable designs and integrated features that cut down on shipping costs, reduce warehouse footprint, and make handling easier—saving space from factory to jobsite.

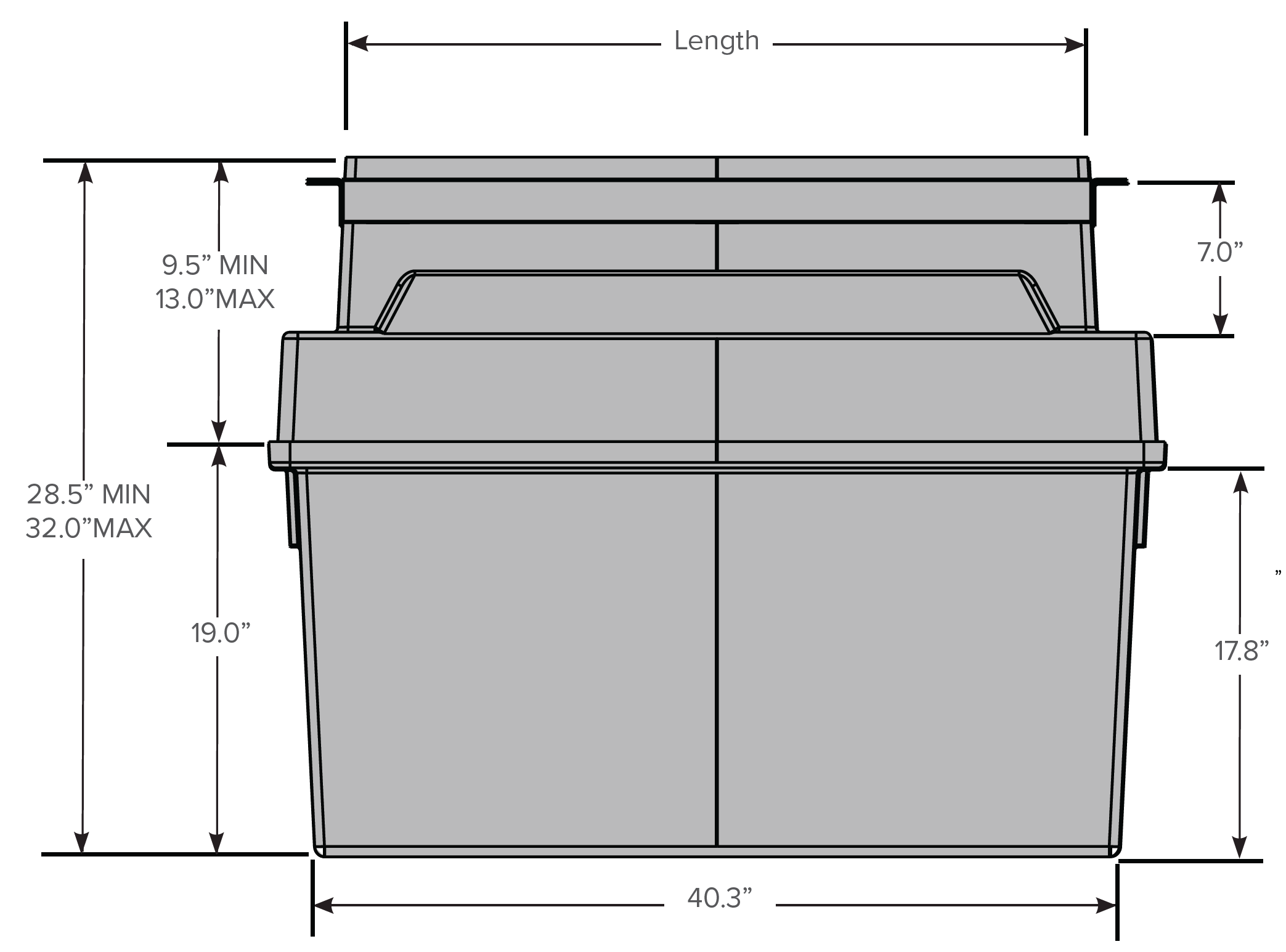

Dimensions
Dispenser Model | Single Wall | Height | Width | Stabilizer Kit |
---|---|---|---|---|
Wayne Ovation 3+1+1 | RSS146371A | 14.75” | 37.1875” | SVU-L |
Wayne Ovation | RSS146371S | 14.75” | 37.1875” | SVU-L |
Wayne Helix | RSS174371A | 17” | 37.1875” | SVU-L |
Gilbarco Ovation | RSS174371S | 17” | 37.1875” | SVU-L |
